Types of Excavator Filter Elements and their Functions

Types of Excavator Filter Elements and their Functions:

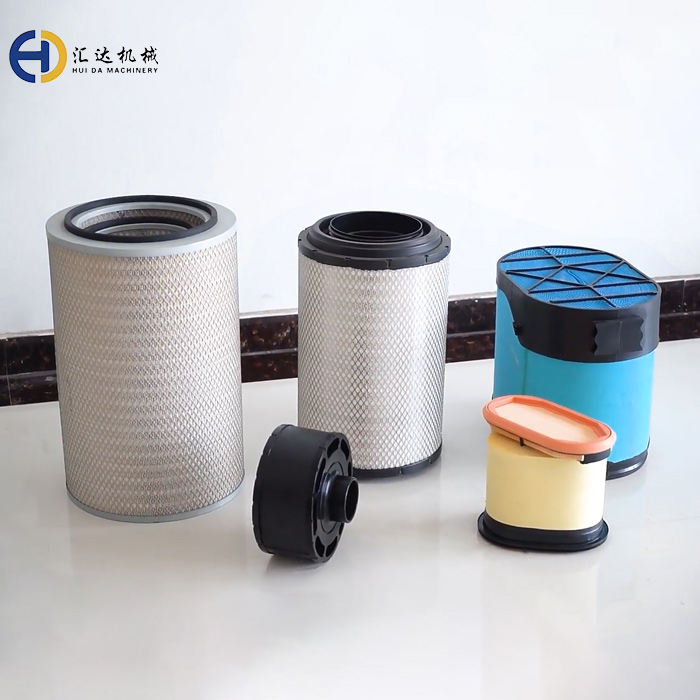

1. Air Filter (Engine): The air filter is primarily responsible for filtering the air that enters the engine. It is the largest filter element in an excavator and is crucial for maintaining engine performance. It also happens to be the most expensive filter element in the entire excavator.

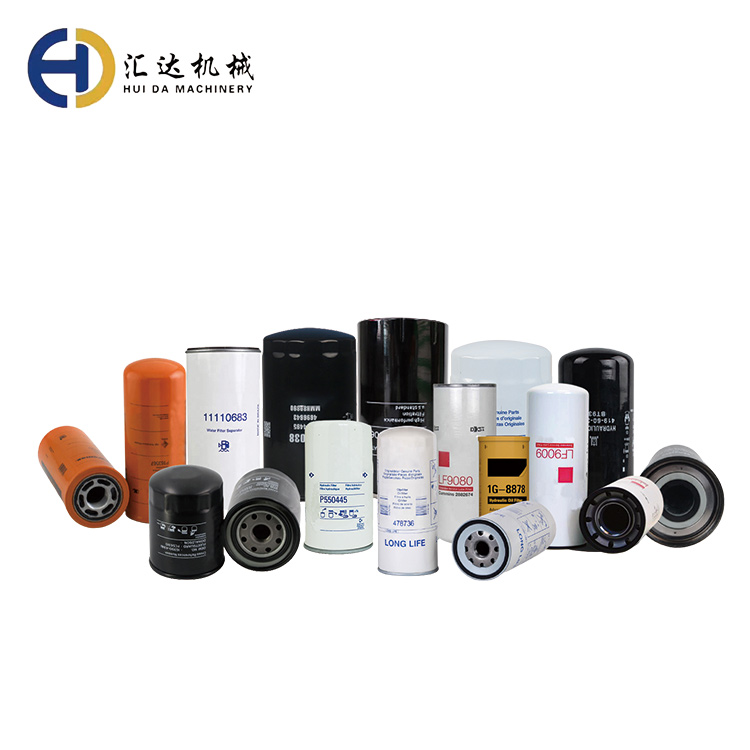

2. Oil Filter: The oil filter is designed to filter the lubrication oil, ensuring that it remains clean and free from contaminants. This helps in prolonging the lifespan of the machine's components and maintaining smooth operation.

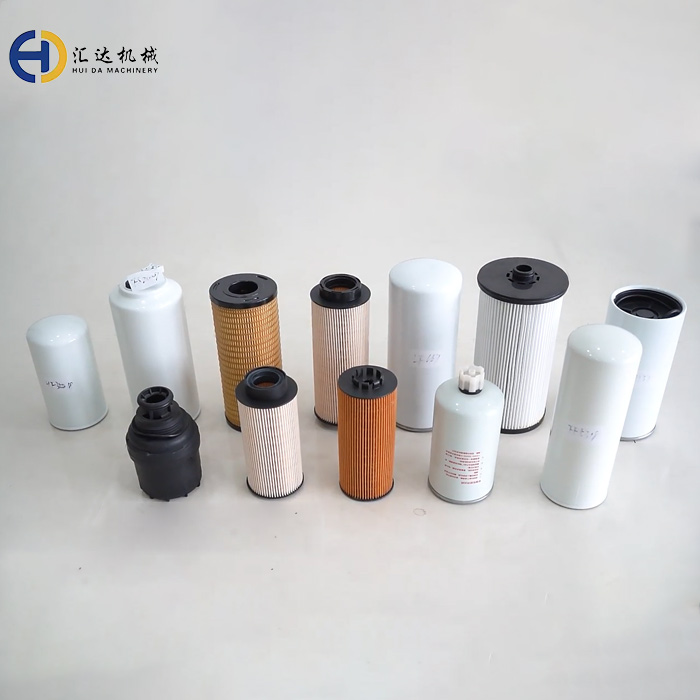

3. Fuel Filter (Diesel Filter): Also known as the diesel filter, the fuel filter is responsible for filtering diesel fuel before it reaches the engine. It removes impurities and ensures the fuel quality, thus protecting the engine from potential damage. In smaller models like the pc200, there are generally two large models or three for foreign Carter's models, with coarse and fine filters.

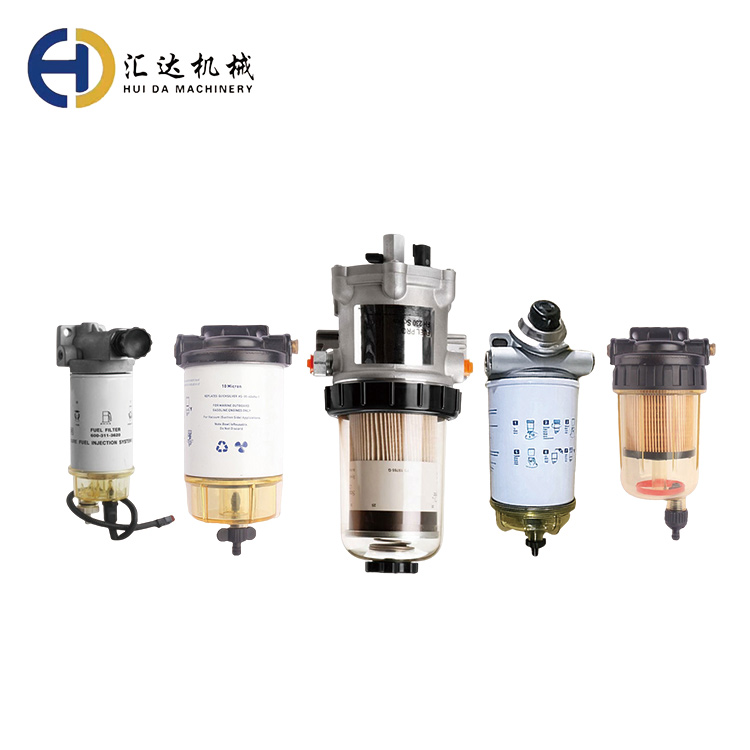

4. Oil-Water Separator: The oil-water separator is specifically designed to filter water from the fuel. It typically includes a cup at the bottom for collecting water, which can be regularly drained to prevent water accumulation in the fuel system.

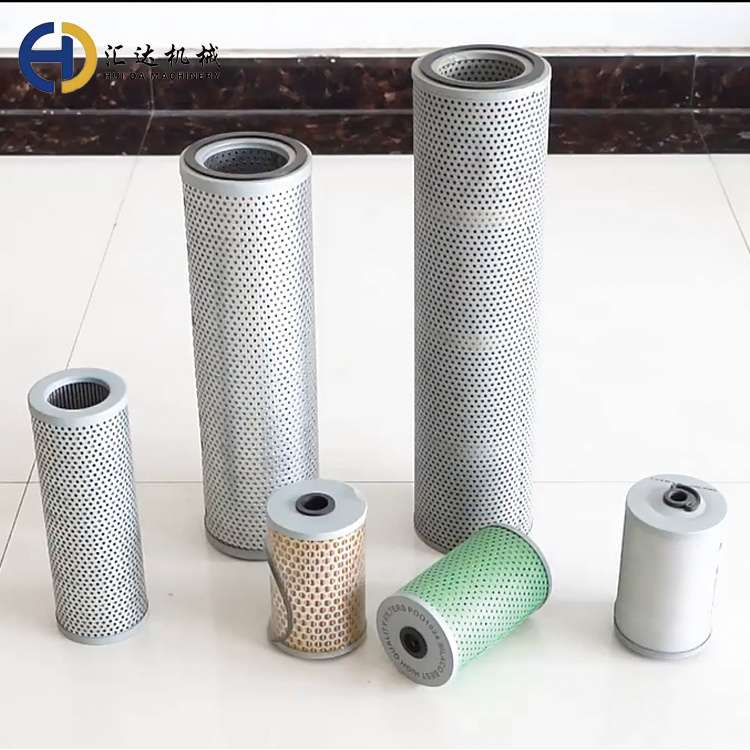

5. Hydraulic Filter: The hydraulic filter plays a crucial role in filtering the hydraulic oil used in the excavator. There are two types of hydraulic filters: one for filtering oil before it enters the system and another for filtering oil as it returns to the reservoir. The first filter is called the oil filter, while the second is known as the return filter.

6. Air Conditioning Filter (Cab): The air conditioning filter is responsible for filtering the air inside the operator's cab. It ensures that the air is clean and free from dust and other particles, providing a comfortable and healthy environment for the operator.

These are the general types of filter elements found in hydraulic excavators. Each filter serves a specific function, contributing to the overall performance and reliability of the machine.
